LIGHT - MED.  DUTY WOODEN WAGON WHEELS  And AXELS



Item # Kirk-532, 532R
light duty wagon wheel


These wagon wheels have hubs that are bolted together, two -piece cast metal.

They are made of solid steam bent hickory with a 1/8" forge shrunk steel rim.

The wagon wheel is 1" wide, with a 1/2" hub hole.  (The hub is 2 1/2"wide.)  They can be used for light duty.

(NOTE: If getting rubber tires add 2" to the diameter because the rubber tire is 1" thick. )


Metal tire
2 - 28" - $229.90
2 - 24" - $229.90
2 - 20" - $221.90
2 - 18" - $222.95
Stubby Axle = $24.95
SOLD IN PAIRS
Rubber Tires
2 - 28" - $255.90
2 - 24" - $249.90
2 - 20" - $243.90
2 - 18" - $241.90
SOLD IN PAIRS
add to cart button
light duty wagon wheel hub closeup


Suggested weight limits per wheel.


18"  - 450 lbs
20"  -450 lbs
24" - 350 lbs
28" - 300 lbs


Stubby axles shown with metal hub on it's spindle.

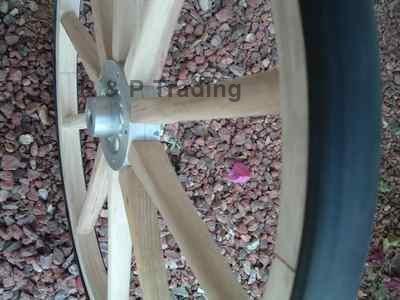

light duty wagon wheel side view

stubby axle

Uses for this wagon wheel

  They make for great yard and garden decor, as well as for carts, wagons, gun carts and whatever your imagination creates

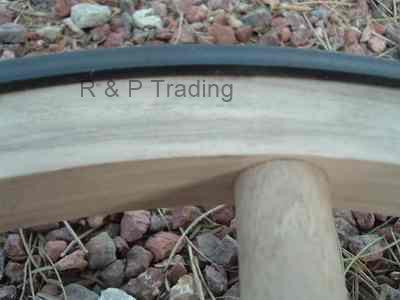

light duty wagon wheels fellows closeup
36", 32" & 28" HEAVIER DUTY WAGON WHEELS
Item #: kirk-orn


heavy duty wagon wheel
These Heavy duty Wagon Wheels are made of solid, steam bent, hickory.

They  have a 3/16" thick forge-shrunk steel  rim/tire.  They have 1 1/4" wide  rims and a 7/8" hub hole.

(Stubby Axles are available.)
2 - 36" -  $316.30
2 - 32" -  $318.90
2 - 28" -- $314.90
Pair of Stubby Axles - $29.95

We Stock full width Axles -
34" - $54.00
32" - $49.00

Max width for wagon box = 24"
Max width for wagon box = 22"
Custom sizes available."

SOLD IN PAIRS

add to cart button

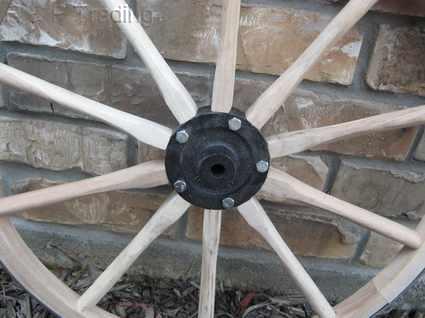

heavy duty wagon wheel hub

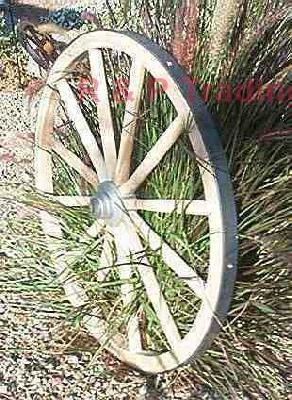

heavy duty wagon wheel side view

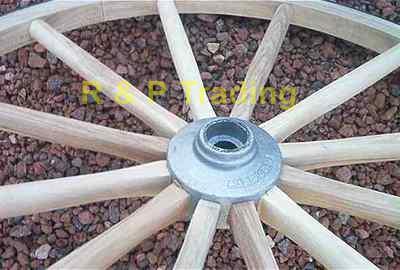

heavy duty wagonwheel-flat

36", 32" & 24" WOODEN HUB WAGON WHEELS
Item #: kirk-orn
wooden hub wagon wheel

2 - 36" - $274.30
2 - 32" - $268.90
2 - 24" - $264.90

SOLD IN PAIRS

addto cart

(Stubby axles are available)

(Also available in 40 inch - call and speak with a representative.)

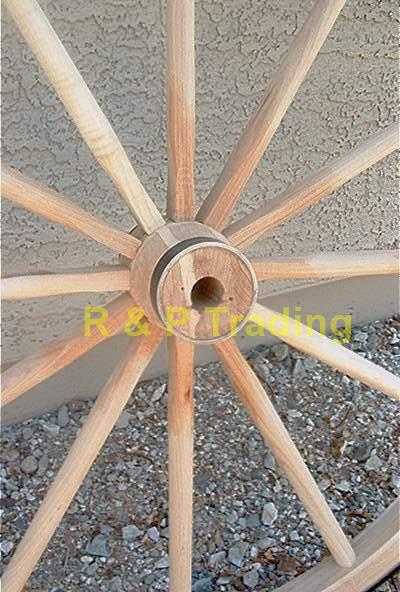

heavy duty wooden hub wagon wheel


Our western hand forged wooden wagon wheels are used for yard and garden decor, and yard art. They lend themselves wonderfully for western rustic garden ideas and for a country garden theme.

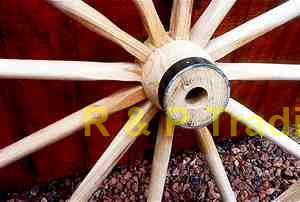

western wooden hub wagon wheel


These Wooden Hub Wagon Wheels are made of solid, steam bent, hickory  have a 3/16" thick forge-shrunk steel
rim/tire.  They have 1 1/4" wide  rims and a 7/8" hub hole.

2" Rim Heavy Duty Wooden Hub Wagon Wheels
item #: kirk-721
Hwavy duty 2 inch rim wagon wheel

These are made of solid stem bent, Hickory.  The metal tire is a 3/16" forge-shrunk 2" steel rim.(Hub hole is 7/8").
2 inch rim wooden hub wagon wheel

Call to order - 903-347-3319
54" -  $393.95
48" -  $365.95
42" -  $360.95
36" -  $353.95

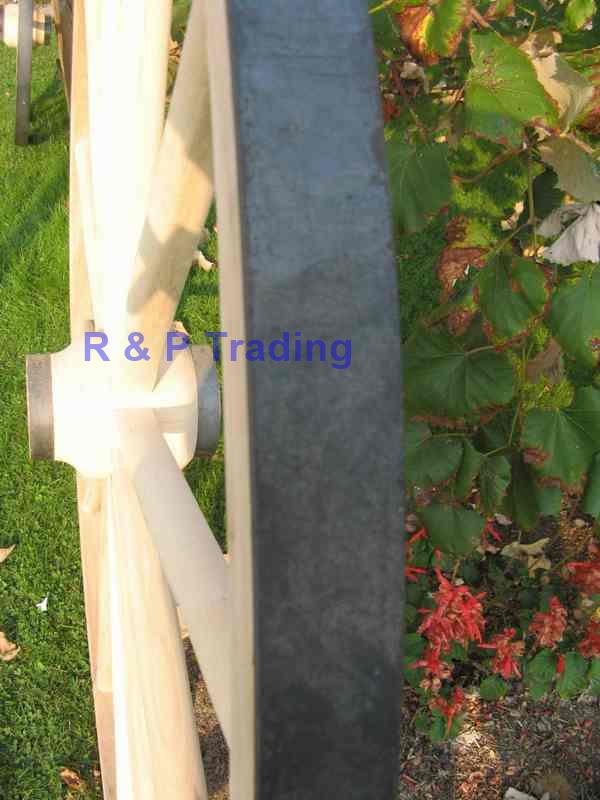

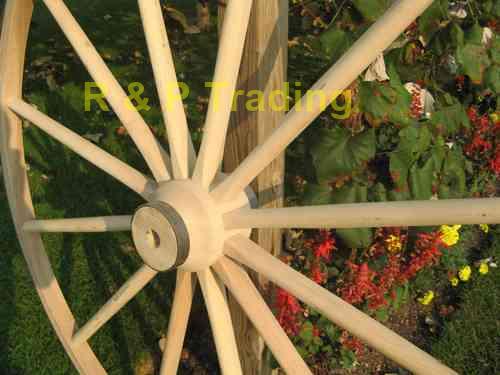

2 inch rim wooden hub wagon wheel close-up

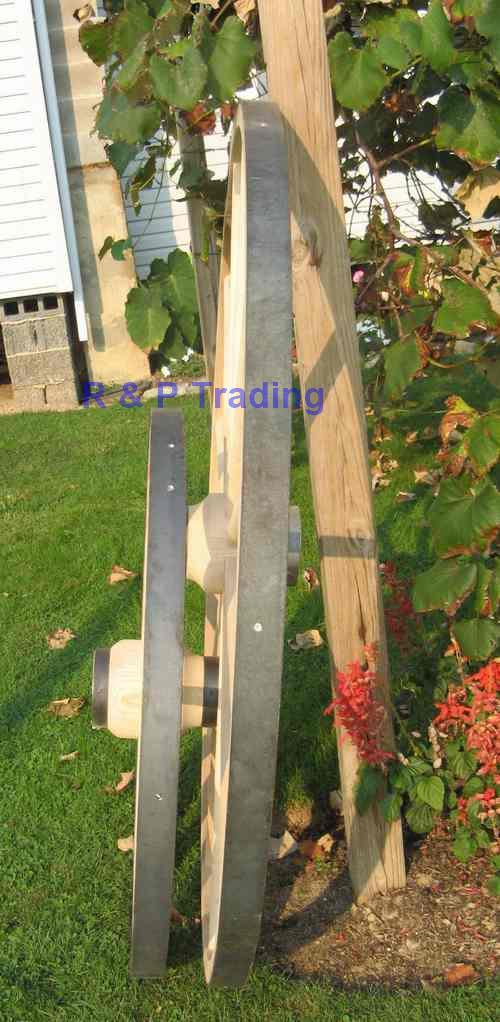

2 inch rim heavy duty wooden hub wagon wheel


Amish Sealed Bearing Carriage/Buggy Wheels with Axles
sealed bearing pony cart wheel

The Hub measures 5" side to side and has a 4 3/4" diameter

STUBBY AXLES are availble as well as full length axles.

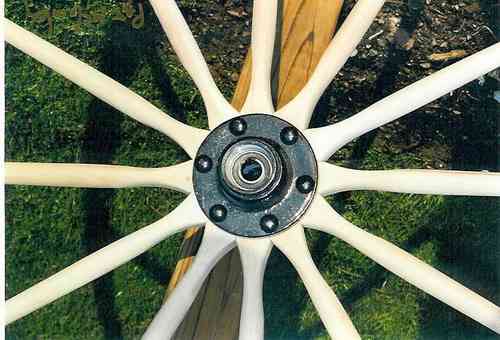

sealed bearing pony cart wheel close-up



These buggy wheels come with 2 sealed bearings in the metal hub - (1 sealed bearing on the inside of the wagon wheel hub and 1 on the outside).

Their hub hole has a 3/4" inside diameter.

WITH STEEL TIRE
2 - 20" Steel Tire  - $322.98
2 - 24" Steel Tire  - $324.98
2 - 28" Steel Tire  - $328.98
2 - 32" Steel Tire  - 334.98
2 - 36" Steel Tire  - 340.98
Pair of stubby axles - $39.00
SOLD IN PAIRS

WITH RUBBER TIRES

2 - 20" Rubber Tire - $426.98
2 - 24" Rubber Tire - $428.98
2 - 28" Rubber Tire - $436.98
2 - 32" Rubber Tire - $442.98
2 - 36" Rubber Tire - $448.98
Pair of stubby axles - $39.00
SOLD IN PAIRS
addto cart


sealed bearing cart wheels

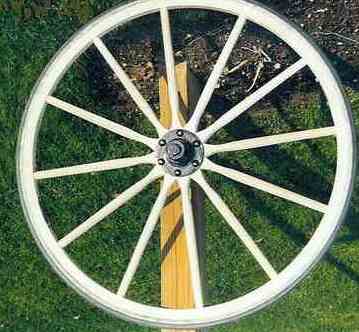

sealed bearing pony cart wheel side view

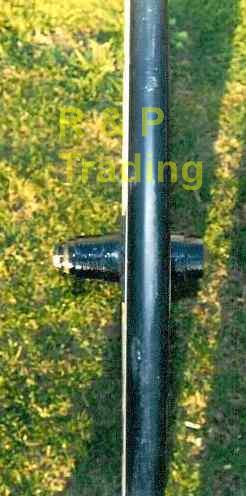

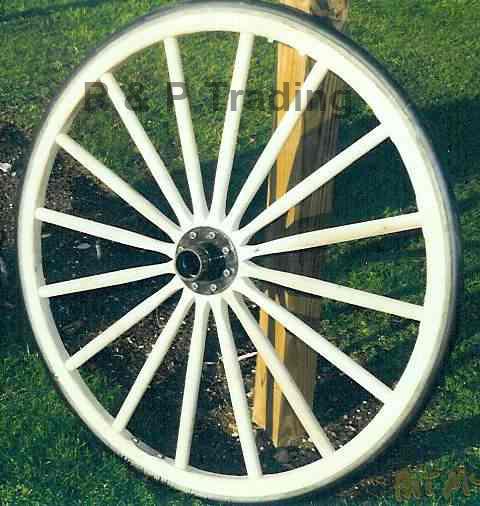

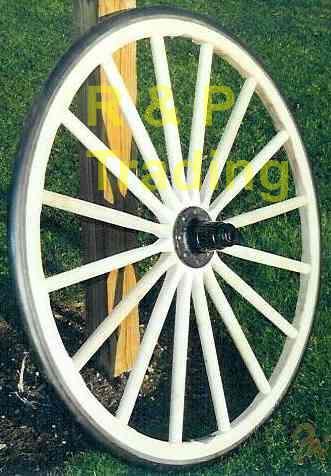

AMISH CARRIAGE,  BUGGY WHEELS
buggy wheel


These carriage wheels are what the Amish use , and come in 3 sizes.  They are made of hickory and are fully functional and can be used on the road.

They have metal hubs, and come with bearings, (2 bearings - 1 for the  inside and 1 for the outside of the hub).



Measurements are:   1 1/4" wide rim/tire     1" tapered to 3/4" hub hole for the  axle 7 1/2" wide hub - (side to side)    5 1/4" hub diameter  They come with a 3/8" steel tire or with a flat rubber tire over the steel.

(NOTE: Add approx. 2" to the diameter of the wheel if it has a rubber tire.)

Stubby Axles are available
STEEL TIRE
   42" Wheel - $295.95
   40" Wheel - $285.95
   36" Wheel - $275.95
Stubby Axles - $53.00 per pair
CALL TO ORDER:
903-725-0576

RUBBER TIRE
42" Wheel - $376.95
40" Wheel - $368.95
36" Wheel - $366.95
Stubby Axles - $55.00 per pair
CALL TO ORDER:
  903-347-3319
6

amish carriage wheel

amish buggy wheel
